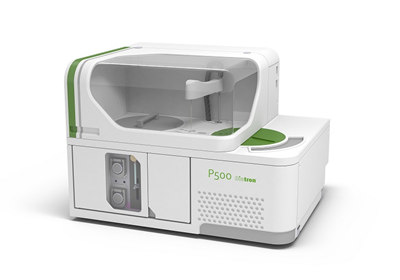

Model: P500
Company: Diatron
Type: Automated Chemistry Analyzer
Made in: Hungary
Quality: ISO, CE/EC

  • Intelligent software
  • High quality components
  • Multi-functional pipetting arm
  • User friendly interface
  • Uninterrupted workflow
  • Inventory management
  • Remote access & diagnostics
  • Cost effective operation
  • Throughput (tests/hour) 300, typical 215, 480 with ISE
  • Sample Racks/Positions per rack:  5 / 19
  • Samples on-board capacity: 95
  • Sample volume (μL): 2 – 100
  • Optional direct 4-ISE module
  • Reaction volume (μL): 180 – 500
  • PMMA reusable/single use cuvettes on board (in segments of five): 80
  • Time to first result (seconds): 45
  • Serum, plasma, urine, CSF and other sample types can be used
  • Refrigerated reagent tray: 7 – 9 ⁰C
  • Refrigerated on-board single reagents/tests: 72
  • Water Consumption (Litre/hour) ≈2
  • Up to 3 different reagents per test
  • Internal Barcode Reader for samples, sectors and reagents
  • Crash and collision detection
  • Reagent pre-heater
  • Clot detection
  • QC:  graphical and statistical; Westgaard rules indicated,
  • Levey-Jennings plots, twin QC and box whisker plots
  • Weight (kg/lbs) 95 / 209

Dimensions (Width x Depth x Height) (cm) 90 x 66 x 62
