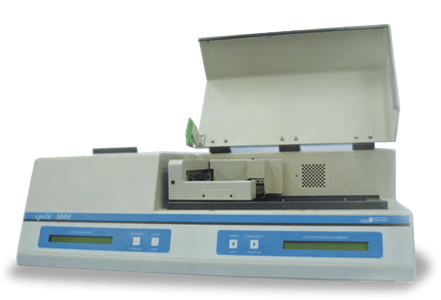

Model: SPIFE 3000
Manufacturer: Helena Laboratories Corporation
Type: Electrophoresis Analyzer
Origin: USA
Quality: BSI, FDA

  • • Urine Protein and IFE using unconcentrated urine
    • High Resolution Proteins with better resolution and separation for easier
    differentiation of glomerular, tubular and mixed proteinuria
    • Pentavalent IFE antisera available for monoclonal protein screening
    • QuickGel SPE, IFE and Hemoglobin assays are ideal for low volumes or quick turnaround.
    • 10-profile IgG IEF gels use unconcentrated CSF for diagnosing multiple sclerosis

Easy, Accurate Sampling –
The integrated applicator precisely applies up to 100 samples at once – fast, clean and accurate. Mylar tips prevent protein adherence that can cause erroneous results.

Auto Reagent Application –
Reagent is automatically applied to gels for enzymatic assays.

Great Results–
Gels are processed automatically with excellent final results & a low cost per test.

Positive ID –
SPIFE 3000 compares the barcodes from the sample tray and gel – if no match, “lockout” prevents errors.

On-line Availability –
SPIFE provides automated access to two on-line stains – neat and efficient.

SPIFE 3000 Specifications

Test Types: Proteins, Immunofixation, High Resolution Proteins, Acid Hemoglobins, Alkaline Hemoglobins, Cholesterol Profile (HDL, VLDL, LDL, Lp(a), CK Isoenzymes, LD Isoenzymes, Alkaline Phosphatase Isoenzymes, Lipoproteins, IgG Isoelectric Focusing
Displays: Two, 2 x 40 character LCD
Timer Range: 00:00 to 99:59 min:sec in 1 second increments
Chamber Temperature Range: 50° to 144°F (10° to 62°C)
Dryer Temperature Range: 86° to 158°F (30° to 70°C)
Input Power: 120 Vac (Cat. No. 1088) or 240 Vac (Cat. No. 1089); 50/60 Hz
Voltage Tolerance: 3%
Power Range: 2000 VA
Isolation: 4000 VRMS
Leakage Current:  Less than 50:A
Operating Environment:  59° to 80°F (15° to 27°C)
Dimensions: 12″ H x 36″ W x 21″ D (30 x 91 x 53 cm)
Weight: 78 lbs. (35.4 kg)
