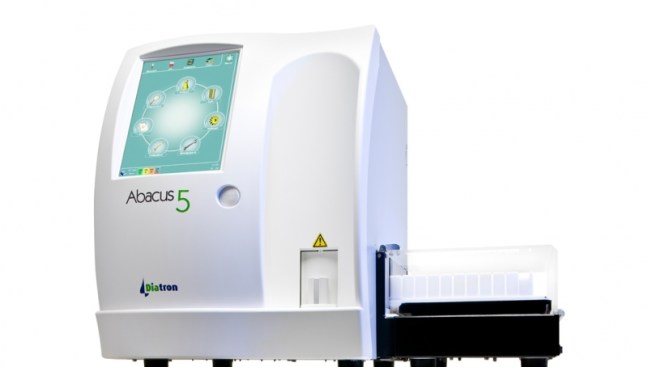

Model: ABACUS 5
Manufacturer: Diatron
Type: Automated Haematology Analyzer
Origin: Hungary
Quality: ISO, CE/EC

  • Parameters: CBC+5 DIFF mode (26 parameters) – 2 histograms: WBC, LYM, MON, NEU, EOS, BAS, LYM%, MON%, NEU%, EOS%, BAS%, RBC, HCT, MCV, RDWsd, RDWcv, HGB, MCH, MCHC, PLT, PCT, MPV, PDWsd, PDWcv, P-LCC, P-LCR
  • Technology: Laser light, Impedance method for CBC, Light absorbance for HGB measurement
  • Throughput: Up to 60 tests/hour
  • Sample volume: 100 μl (open/closed, whole blood)
  • Quality Control: Separate QC database, Levey-Jennings Charts
  • User interface: color graphics LCD, touch screen
  • Data storage capacity: 100.000 records
  • Cap recognition mechanism to avoid sampling errors, diagnostic flagging system
  • Autoloader with 100 sample positions
  • Interfacing capabilities: RS232, 4 port of USB
  • Printout: External
  • Dimensions: 40 x 50 x 45 cm
  • Weight: 35 kg
  • Power: 110-220 or 220-240V, 50-60Hz

Operating temperature : 15-30 ˚C
